AR-Series – PD-5 Special Purpose Arrows
AR-Series – PD-5 Special Purpose Arrows
SKU:SKU: 0000813
This item is currently out of stock. You can pre-order it. Delivery is expected in August 2025.
Couldn't load pickup availability
Technical data
Technical data
- Length: 220 mm
- Diameter: 7.5 mm
- Weight: 176 grains (11.4 g)
Scope of delivery
Scope of delivery

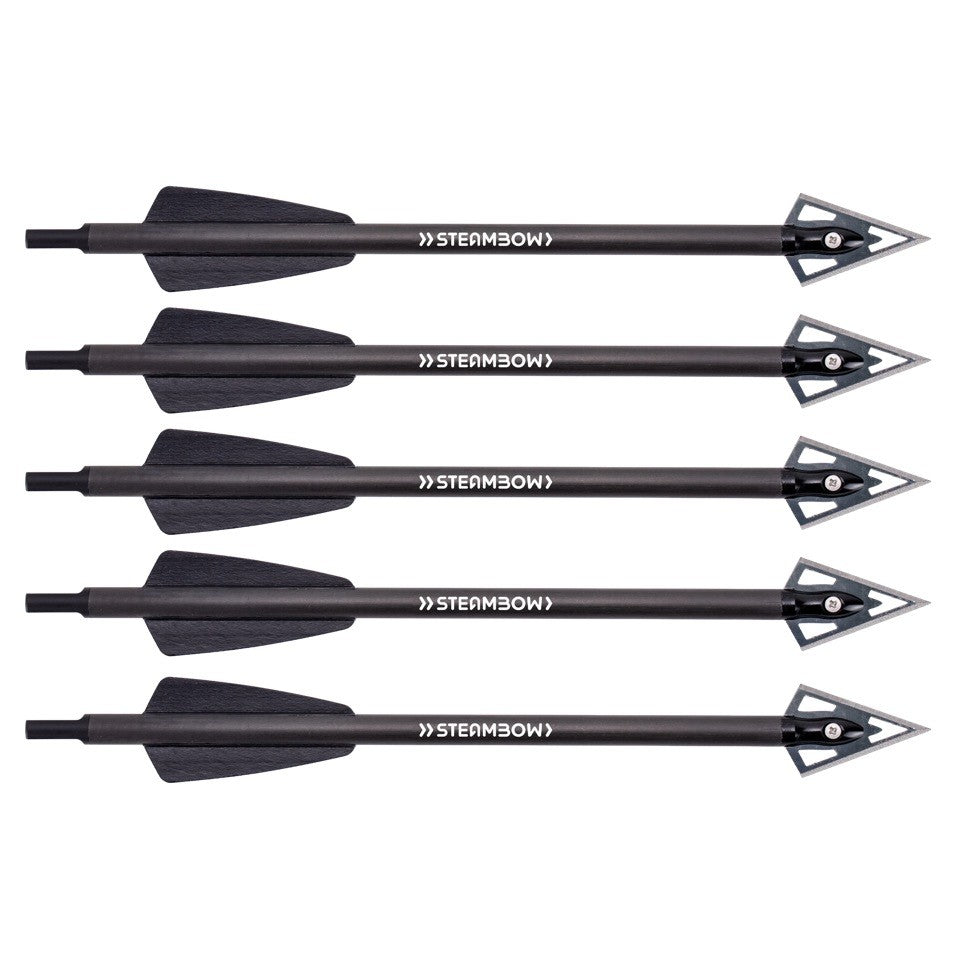

- 5 hunting arrows
Material
Material
- Shaft: Carbon
- Tip: AUS-8 steel
- Blade holder: Steel
- Nock: Aluminum
Share

Product description
These arrows are optimized for maximum impact at short range – ideal for distances from 0 to approximately 25 meters. This is achieved through a high total weight. The hunting arrow features an aluminum nock, an extremely durable carbon shaft, a steel blade holder, and a solid, sharp AUS-8 steel tip (blade thickness: 1.3 mm). The arrowheads are black-coated for easier identification. Thanks to the robust blade design, this arrow is capable of penetrating heavy clothing or gear. Therefore, extreme caution is advised when handling these arrows. The blade holder is permanently bonded to the shaft to ensure the blades are always perfectly aligned. The blade is screwed in and replaceable.
Note: The “7.5x220 mm” arrow caliber is very similar to the so-called 7.5” arrows. Unfortunately, these arrows are not standardized and are offered in widely varying quality. With draw weights up to 90 lbs, most 7.5” arrows will function well in the PD-5. A key difference with the 7.5x220 mm arrows is the use of a flat nock instead of the more common half-moon nock.
Total weight: 176 grains (11.4 grams)
Identification: black shaft, black nock, black vanes & black blade

Scope of delivery
- 5 hunting arrows
